PLC360GS

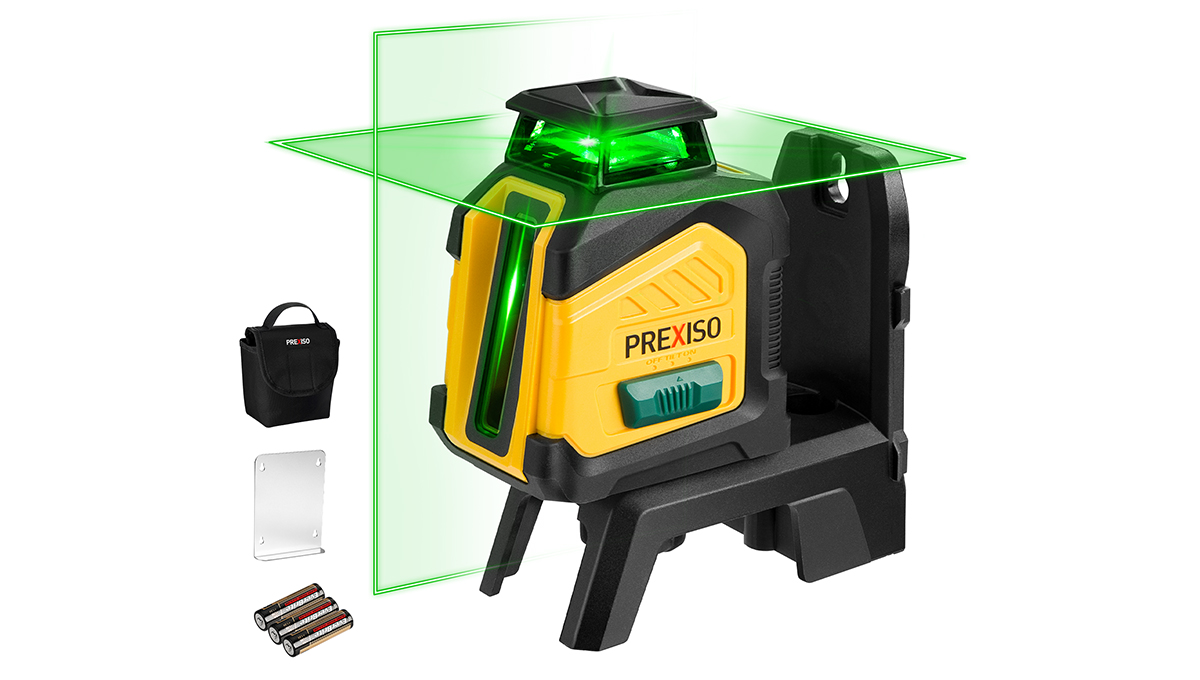

GREEN-BEAM SELF-LEVELING 360-DEGREE CROSS LINE LASER LEVEL

Back

• Expansion Angle: Vertical Beam Spread Covers wider angle - An expansion angle easily projects a vertical line from the floor to the ceiling; Class II laser product, maximum laser output < 1mW

• 360° Green Laser Source: 360° Horizontal beam easily projects a line covering the wall and ceiling. Projects bright horizontal, vertical & cross lines onto flat surfaces; Green laser is 3 times brighter than red laser with the same light source, and gives you maximum green laser brightness up to 100 ft with high accuracy

• Dual Power Modes & Universal Usage: PREXISO laser level has a Type-C power interface. When the battery is taken out, the laser tool can be used by direct plugging or power bank Rotatable 360° magnetic mounting base to assemble with the 1/4"-20 treaded mount at the bottom of the tool. Suitable for wide uses, such as paving tiles, installing carpentry for doors, windows, or furniture, hanging wallpaper, etc. PREXISO line laser dustproof, wear-resistant, cold, and high temperature. Covered by TPE soft rubber for shock-resistant and comfortable grip

• Self-Leveling & Manual Mode: With the switch to the "unlocked" side, the tool is in self-leveling mode, which means the tool will level itself if it is within ±4° of horizontal. If the surface tilts more than 4 degrees, the lasers blink and the LED light (lock) on the top goes red; Slide the switch to "lock" side and press the button for 3sec to turn on the laser in manual mode, the self-leveling feature is disabled and lock lines for alignment to other angles

• Bonus Magnetic Base & Wall Mount Plate & Storage Bag: If you're trying to measure on uneven ground, The magnetic base helps you adjust the position of the laser on the ground for maximum accuracy; The Wall mount plate can help you easily fix on walls or other surfaces for more applications; And it comes with a high-quality storage bag, you can storage the level keeping it in great working condition


Laser λ=510-530 nm, Class II laser, maximum laser output<1mW
Operating range (typically) 100FT/30M(under 100LUX indoor environment)
Accuracy (typically) ±3mm@10m (±1/8" @32ft )
Self-leveling range ±4°±1°
Estimated battery life >4h (Lithium-ion battery)
Optimum operating temperature 14°F to 104°F (-10°C to 40°C)
Storage temperature -4°F to 140°F (-20°C to 60°C)
Batteries 3 x 1.5V alkaline AA
