MEASUREMENT TOOLS

PLC360GST

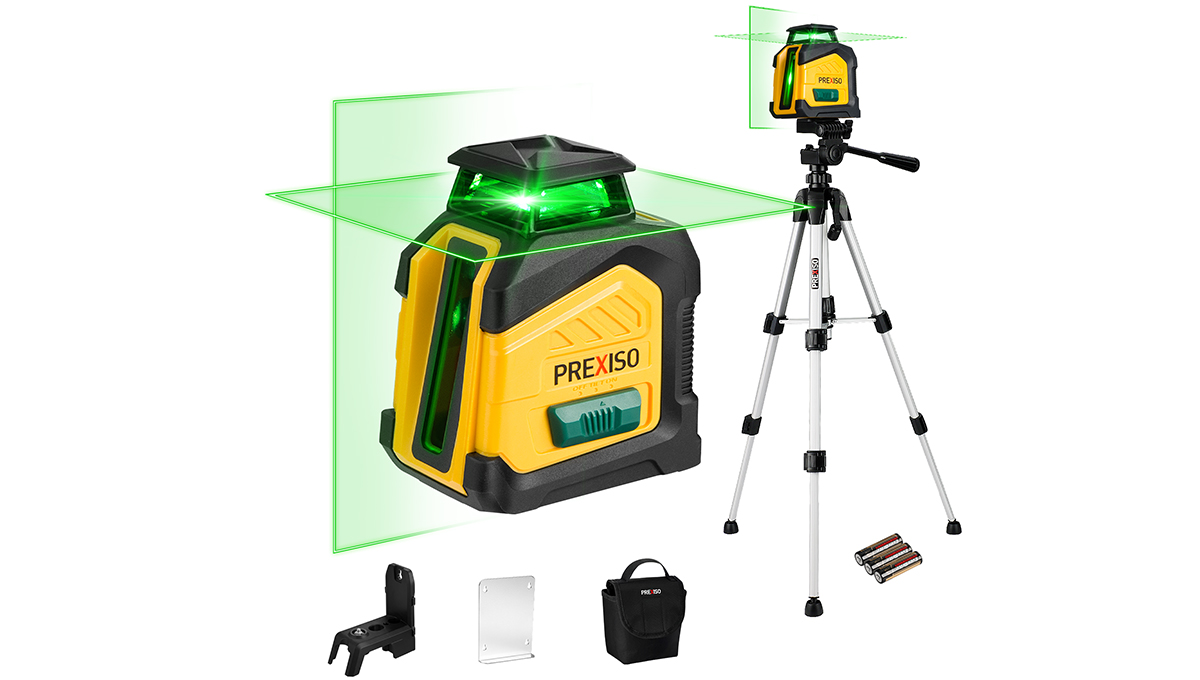

GREEN-BEAM SELF-LEVELING 360-DEGREE CROSS LINE LASER LEVEL WITH TRIPOD

Back

Better used indoors:Laser products are recommended for indoor use. Avoid direct sunlight when you use the outdoors, as strong sunlight weakens the laser energy and can affect accuracy and measurement range.

360° Green Laser Source: 360° Horizontal beam easily projects a line covering the wall and ceiling. It projects bright horizontal, vertical & cross lines onto flat surfaces; Green laser is 3 times brighter than red laser with the same light source and gives you maximum green laser brightness up to 100 ft with high accuracy

Bonus Laser Level Tripod: The Tripod can expand to 37-1/2 inch helps you adjust the position of the laser for maximum accuracy. It closed height of 17 inch, easy to store; Combined with a standard 1/4" quick-release plate, you can install and remove the laser level in seconds

Expansion Angle: Vertical Beam Spread Covers wider angle - An expansion angle easily projects a vertical line from the floor to the ceiling. Class II laser product, maximum laser output < 1mW

Dual Power Modes & Universal Usage: PREXISO laser level has a Type-C power interface. When the battery is taken out, the laser tool can be used by direct plugging or power bank.

Rotatable 360° magnetic mounting base to assemble with the 1/4"-20 treaded mount at the bottom of the tool. PREXISO line laser dustproof, wear-resistant, cold, and high temperature. Covered by TPE soft rubber for shock-resistant and comfortable grip

Self-Leveling & Manual Mode: With the switch to the "UNLOCK" side, the tool is in self-leveling mode, which means the tool will level itself if it is within ±4° of horizontal. If the surface tilt more than 4 degrees, If the surface tilt more than 4 degrees, the laser will blink as an alarm; Slide the switch to "LOCK" side and press the button for 3sec to turn on the laser in manual mode, the self-leveling feature is disabled and lock lines for alignment to any angles

Multipurpose & Wide Application: PREXISO line laser can cover the room's surrounding floors, walls, and ceilings. The horizontal and vertical lines intersect at an angle of 90° to help you quickly visualize and complete the square layout; Suitable for floor and wall tiling, chandelier, spotlight installation, hanging wall draws, air condition installation, door & window calibration, building structure measurement; Class II laser product, maximum laser output < 1mW


Laser λ=510-530 nm, Class II laser, maximum laser output<1mW
Operating range (typically) 100FT/30M(under 100LUX indoor environment)
Accuracy (typically) ±3mm@10m (±1/8" @32ft )
Self-leveling range ±4°±1°
Estimated battery life >4h
Optimum operating temperature 14°F to 104°F (-10°C to 40°C)
Storage temperature -4°F to 140°F (-20°C to 60°C)
Batteries 3 x 1.5V alkaline AA
