PLC3-360GB

RECHARGEABLEGREEN BEAM 3 PLANES CROSS LINE LASER LEVEL

Back

• 5 Leveling Modes & 3 x 360° Full Green Laser Layout: 1 x 360° horizontal and 2 x 360° vertical beam easily projects line cover all around the room. PREXISO three-pane leveling laser tool with 5 leveling modes, you can easily switch to any laser you want

• Multiple Installation Methods & Application: PREXISO laser level comes with 1/4"-20 thread to suit for standard tripod. Equipped with a magnetic bracket, it can be rotated to the required angle; The compact cross line laser can cover walls and ceilings or cabinets and also can be placed on the ground, laying tile and flooring; Mounted on a workbench installing electrical wiring, pipes, framing doors and windows, hanging pictures on walls

• Outdoor Pulse Mode: The included pulse mode extends the laser range up to 196ft with laser receiver in bright light or outdoor conditions; In pulse receiver mode, the laser lines are less visible to the human eye; The laser lines flash at a very high frequency, enabling them to be detected by the laser receiver. (NOTE: Pulse mode needs to be used with the receiver, you need to buy it separately)

• Self-Leveling & Manual Mode: With the switch to the "ON" side, the tool is in self-leveling mode, which means the tool will level itself if it is within ±4° of horizontal. If the surface tilts more than 4 degrees, the laser will blink as an alarm; Slide the switch to "OFF" side and press the button for 3sec to turn on the laser in manual mode, the self-leveling feature is disabled, and lock lines for alignment to any angles

• Dual Power Methods: PREXISO Laser Level employs a rechargeable lithium battery and comes with a Type-C charging port that can be charged separately. When taking out the battery, the laser tool can be used at the job site by plugging in; Class II laser product, maximum laser output < 1mW

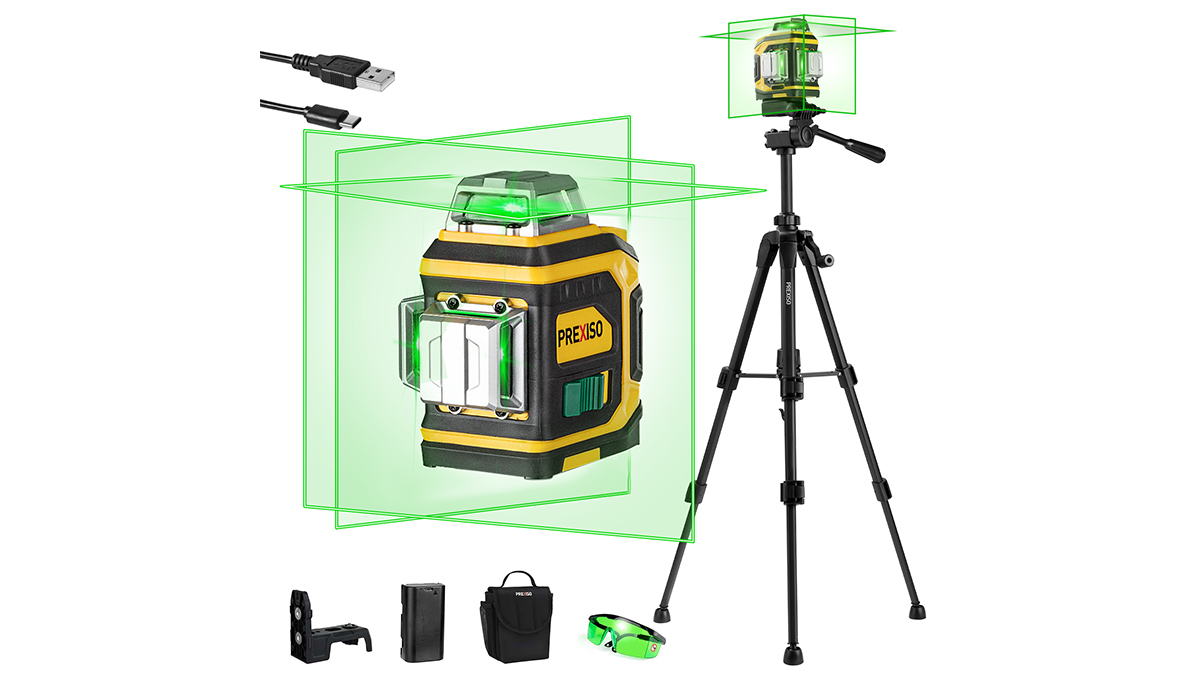

• Bonus Laser Level Tripod & Magnetic Bracket: The Tripod can expand to 37-1/2 inch, helping you adjust the position of the laser for maximum accuracy. It has a closed height of 17 inches, ease of storage; Equipped with a magnetic bracket, the laser tool can be rotated at 360° randomly. The magnetic bracket offers 1/4"-20 mount threads to suit the tripod

• Adjustable Frame Green Glasses: The arm length of the adjustable frame glasses is adjustable for 4 modes by about 3/4 inch. The side and nose pieces fit perfectly by adjusting the length of the arm. You don't need to take off myopia or farsighted glasses, you can directly wear the glasses outside. It can increase the visibility of the green laser line or the green laser point to some extent

• Bonus Portable Bag & Type-C Cable Wire: A black cloth bag is provided, and the lining has thin fleece, which can play a protective role; Finally a type-c cable wire is included


Laser λ=510-530 nm, Class II laser, maximum laser output<1mW
Operating range (typically) 100FT/30M(under 100LUX indoor environment)
Range with receiver 60m (196ft)
Accuracy (typically) ±3mm@10m (±1/8" @32ft )
Self-leveling range ±4°±1°
Estimated battery life >7h (Lithium-ion battery)
Optimum operating temperature 14°F to 104°F (-10°C to 40°C)
Storage temperature -4°F to 140°F (-20°C to 60°C)
Batteries Rechargeable Lithium-ion battery
