PTD600V

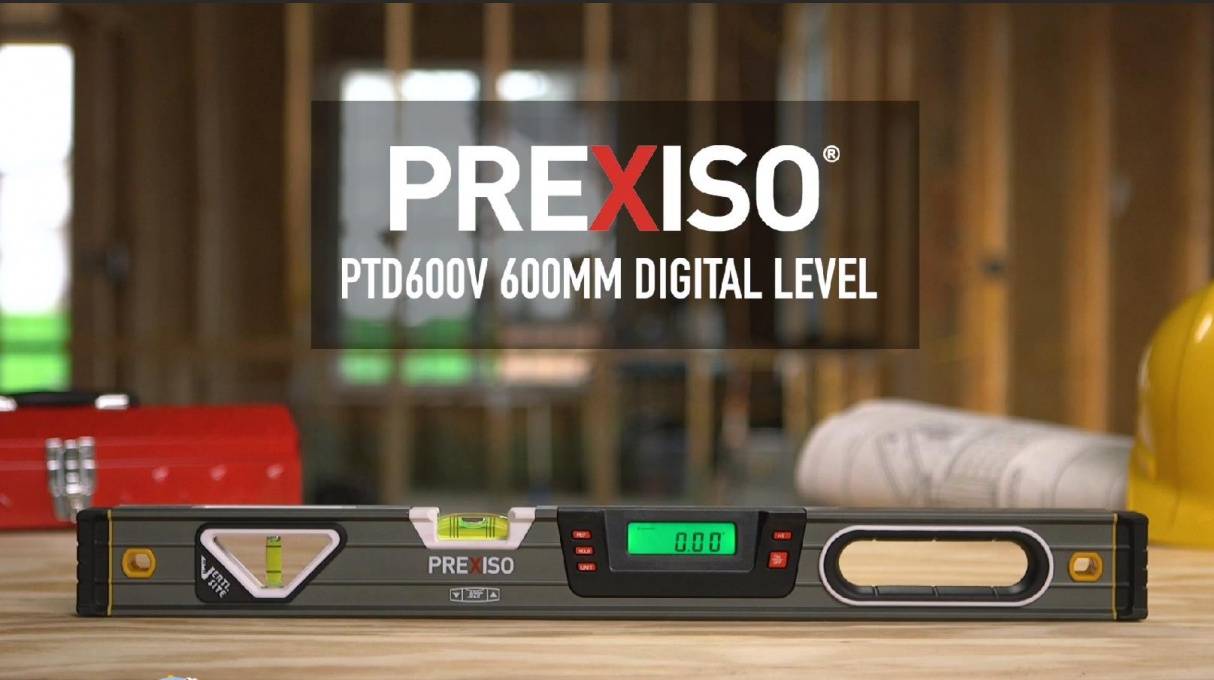

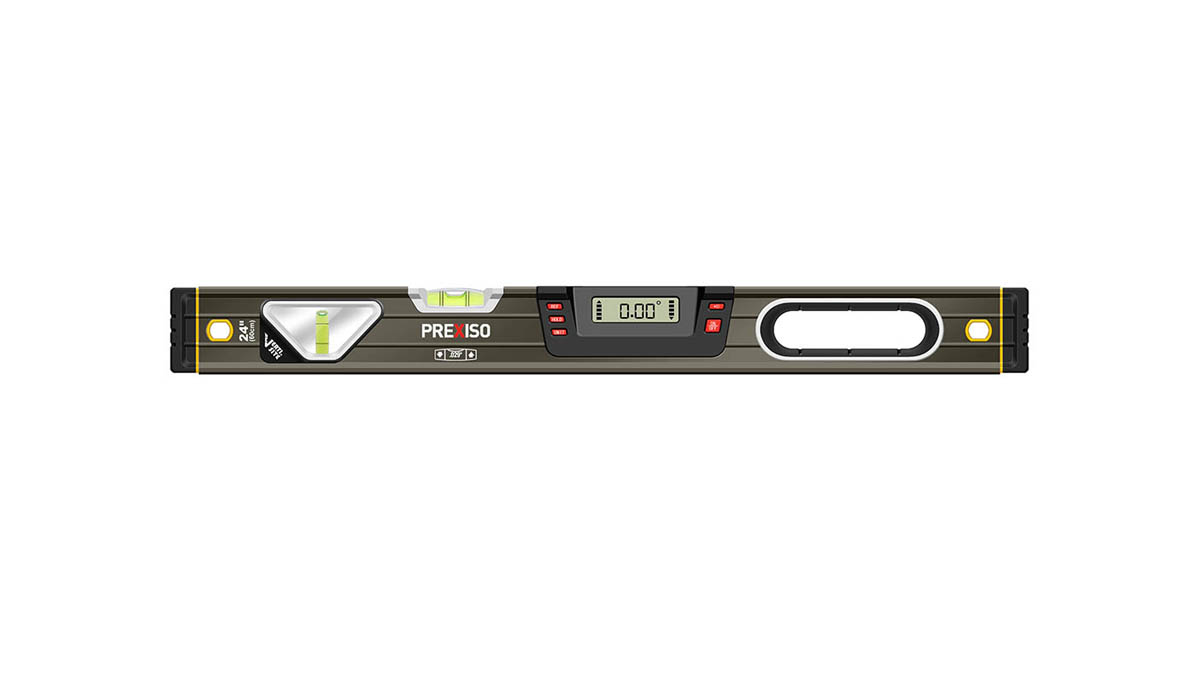

600MM DIGITAL LEVEL ANGLE SLOPE

Back

• Quick & accurate measurement

• Measuring Range: 0–360° (4 x 90°)

• Accuracy: 0° and 90°, ±0.1° ; -1° to 89°, ±0.2°

• Hold/lock measurement feature

• Large display with backlight

• Display flips when positioned upside down to read correctly


Measure Range 0-360° (4×90°)
Electric Module accuracy 0°/45°/90°/135°/180° ±0.1° In intermediate area ±0.2°
Spirit Level accuracy In normal position 0.5m/mm=0.029° In reverse position 0.5m/mm=0.029°
Dimensions 600x61x29 mm (23.6x2.4x1.14in)
Power supply 2xAAA alkaline batteries
Weight (without batteries) 0.65kg (1.43lb)
Working temperature 0-40°C 32-104°F
Storage temperature -10-50°C 14-122°F
Includes Digital level, 2*AAA alkaline batteries
