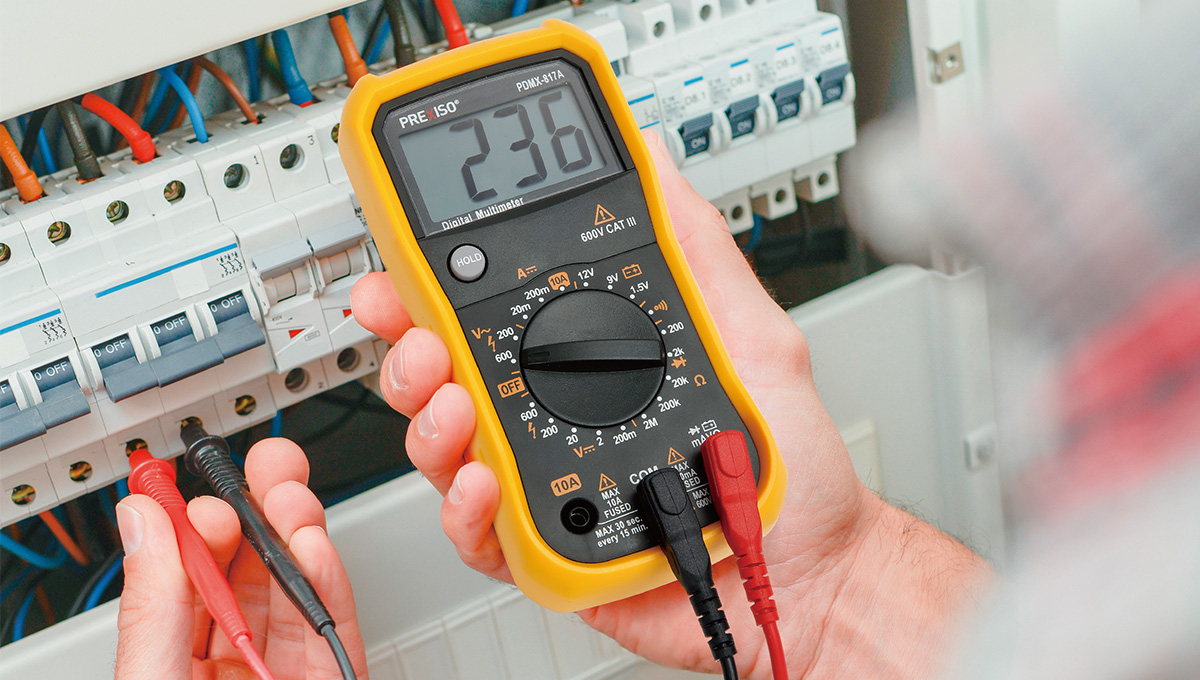

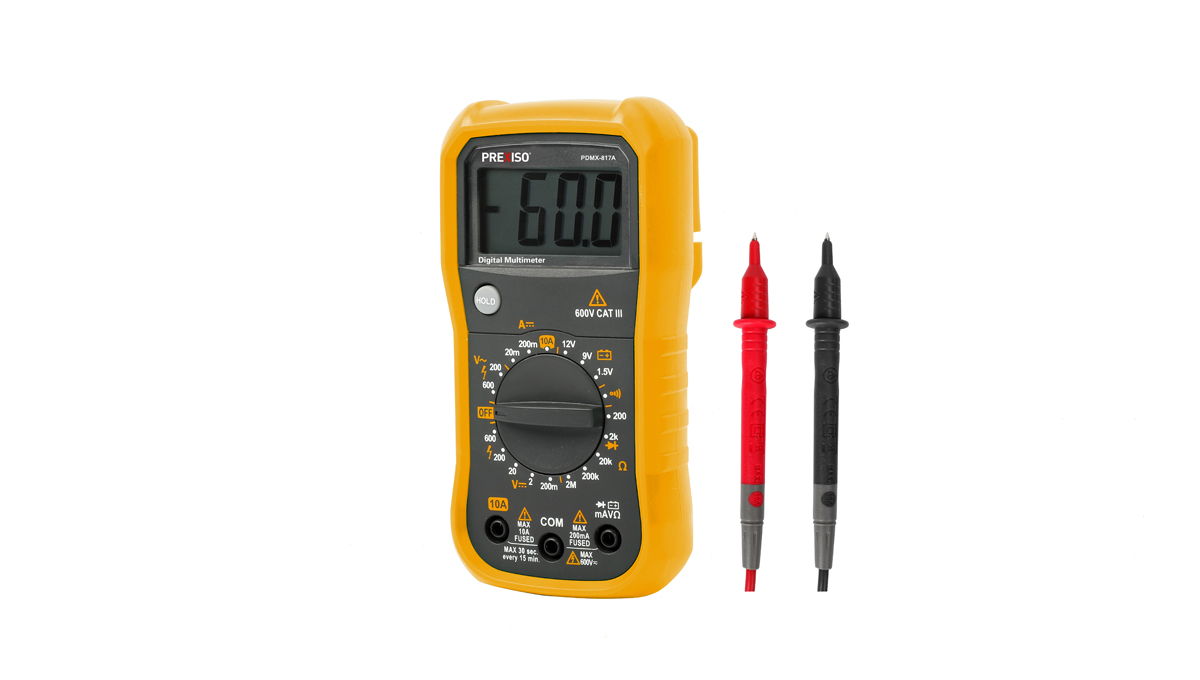

PDMX-817A

DIGITAL MULTIMETER

Back

• Manual/auto power off.

• Perfect for household electrical testing.

• Be accurate in testing AC/DC voltage, resistance, capacitance, frecuency, and duty cycle.

• Support diode and on/off test.

• Conductivity detection with buzzer.

• Pocket size and support data hold.


Max voltage 600V AC/DC
DC Voltage range(Accuracy) 200mV/2V/20V/200V/600V/(±(0.5%+3))
AC Voltage range(Accuracy) 200V/600V(±(1.2%+10))
DC Current(Accuracy) 20mA/200mA( ±(1.0%+5)) 10A(±(2.0%+10))
AC Current 20mA/200mA/10A
Resistance(Accuracy) 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±(0.8%+5)
Tool size 8.3x4.2x2.2cm
Battery Tester 1.5V/9V/12V
Battery 2 × AAA, 1.5V
Package sandwich
