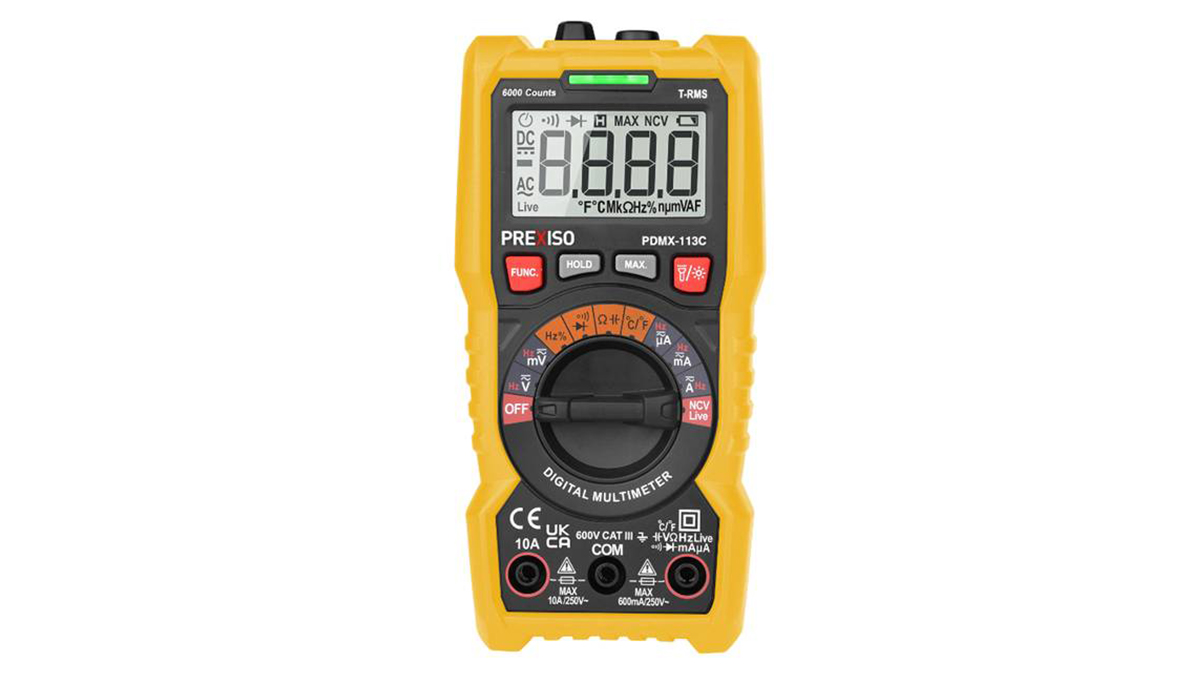

PDMX-113C

Digital Multimeter

Back

• Manual/auto power off.

•Be accurate in testing  AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Circuit continuity and frequency/duty

•Support diode and on/off test

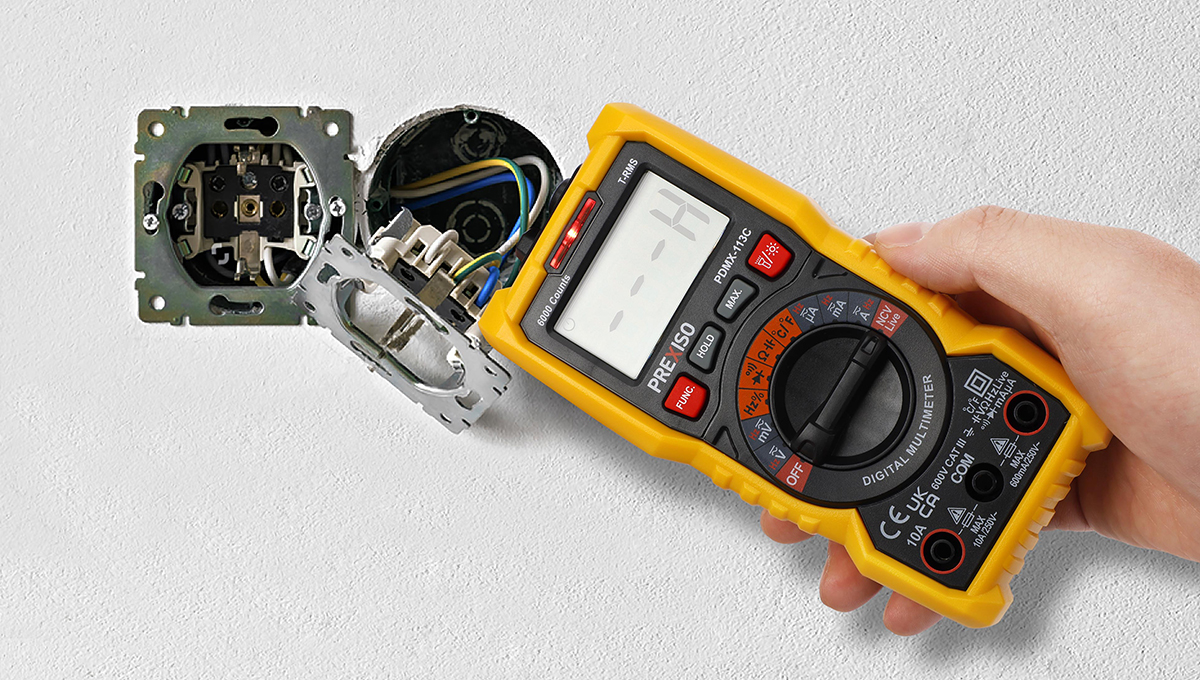

•Convenient features like NCV and Live test

•Conductivity detection with buzzer

•Pocket size and support data hold

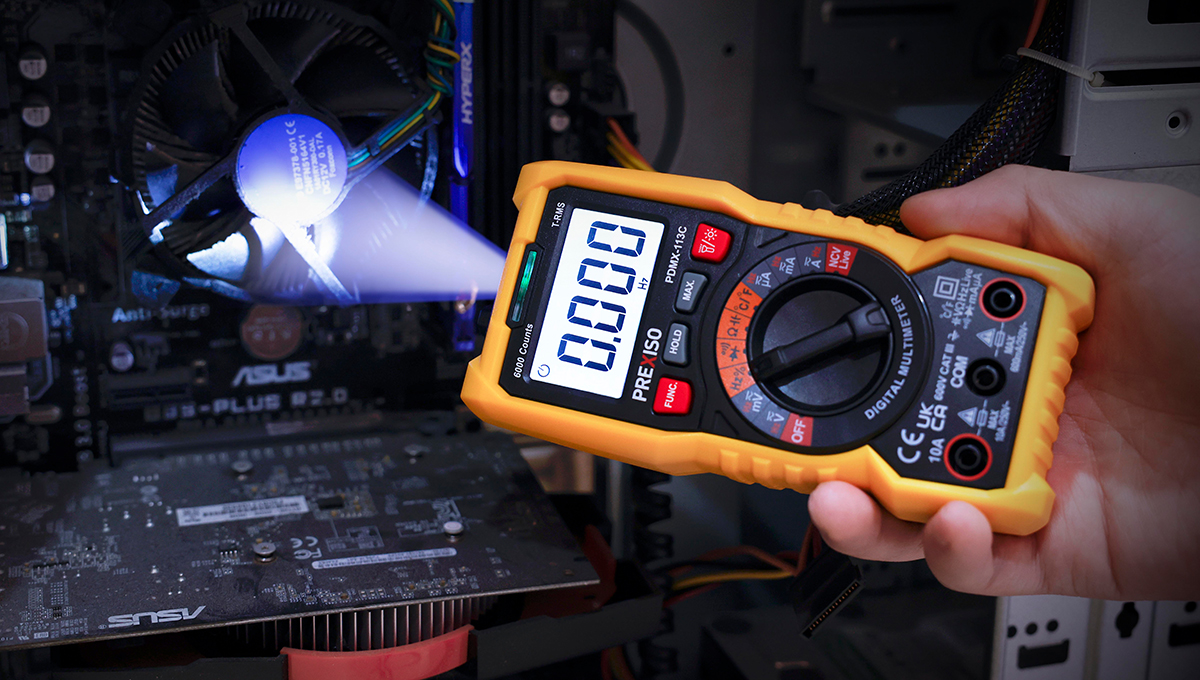

•Easy use in dark environment with backlight and flashlight function


Package Color Box
Battery 2 × AAA, 1.5V

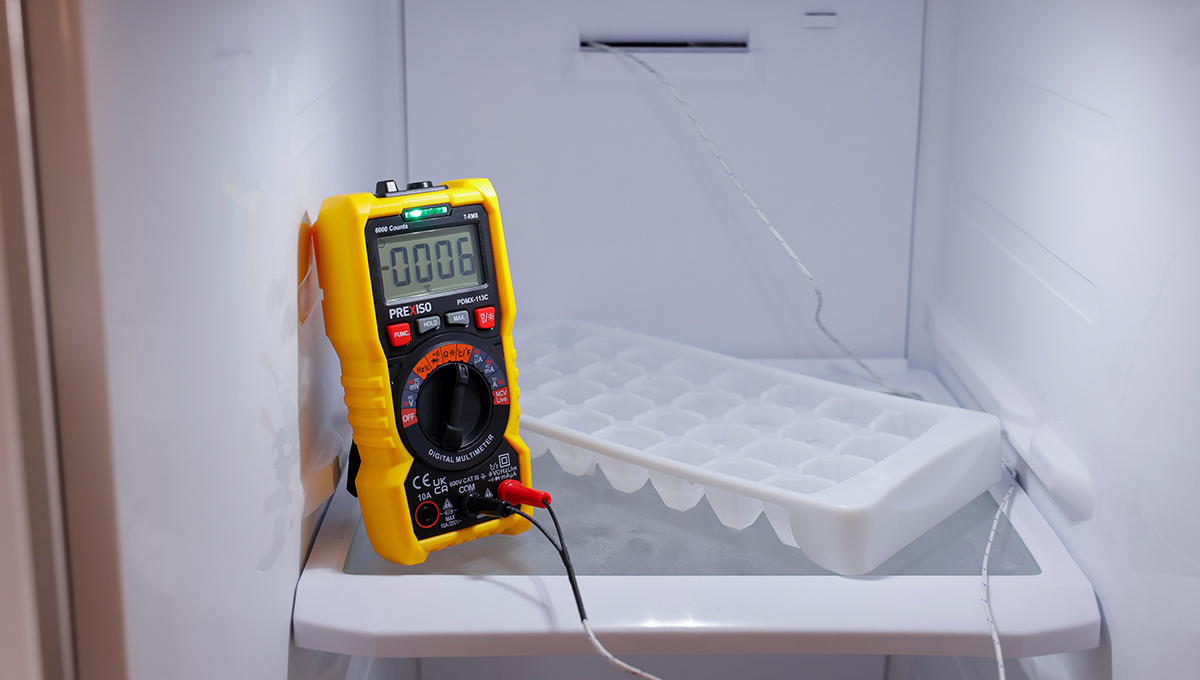

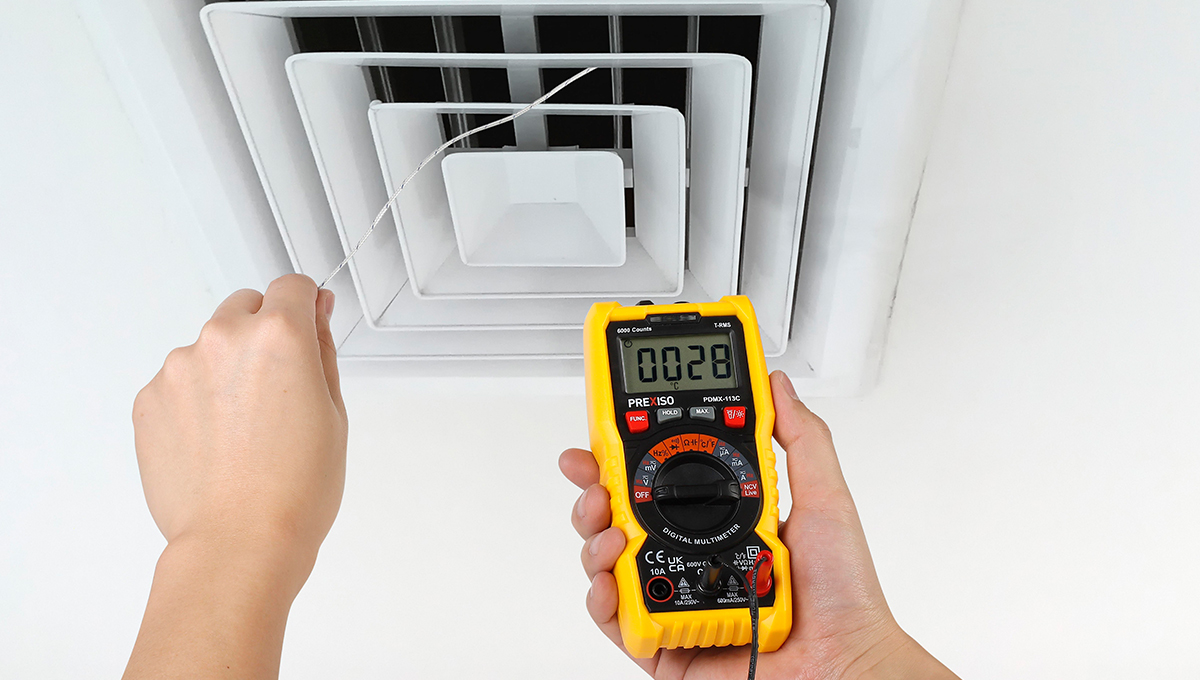

KT-temperature range -20℃ to 1000℃(-4℉ to 1832℉)
Resistance(Accuracy) 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ/±(1.0%+3)
AC Current(Accuracy) 600μA/6000μA/60mA/600mA/6A/10A/(±(1.5%+3))
DC Current(Accuracy) 600μA/6000μA/60mA/600mA/6A/10A/(±(1.2%+3))
AC Voltage range(Accuracy) 600mV/6V/60V/600V/(±(1.0%+3))
DC Voltage range(Accuracy) 600mV/6V/60V/600V/(±(0.5%+3))
Max voltage 600V AC/DC
